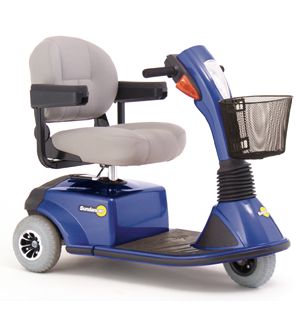

Sundancer

Contemporary styling and superb performance complement one another perfectly in the nimble Sundancer® luxury scooter, giving you the power, range, features and comfort that you demand to accomplish your daily activities. Don’t let its small size fool you-the Sundancer is up to your challenges.

Sundancer Features

• Adjustable tiller for driver comfort Full directional lighting package
• Contoured low-back seat with adjustable back angle and flip-up armrests for comfortable positioning
• Maximum weight capacity of 300 lbs.
• On-board battery charger-charge it wherever you go; up to 25-mile range per battery charge
• Speed range adjustable up to 4.5 mph
• Easy to maneuver through hallways or tight spaces in the home
• Mag wheels for great style; 9-inch front and rear tires for improved outdoor performance
• Easy to disassemble for transport
• Extensive range of options and accessories available

Sundancer Specifications

Overall Length: 42" Overall Width: 23.5"

Per-charge Range* (Max): up to 20 - 25 Mi. (varies w/ passenger weight)

Maximum Speed: Variable up to 4.5 MPH Turning Radius: 38"

Total weight, incl batteries*: 193 lbs. Weight w/o Batteries: 138 lbs.

Wheels: Front 2.5" x 9" Rear 2.5" x 9" Ground Clearance: 3.5"

Battery (typical installation): (2) 12V deep cycle (AGM or gel cell) Size: U-1, 31 to 36 AH

Battery (optional sizes): N/A Drive Train: Sealed transaxle, 24 volt DC motor Battery Charger: On board 3A Weight Capacity: 300 lbs.

Seat type (standard): Deluxe Contoured low-back seat

Battery Weight*: approx. 24.5 lbs. ea. Standard Seat Weight: 30 lbs. Standard Seat Width: 17"

Standard Seat Depth: 16" usable Body colors: Red, Blue Heaviest Piece Weight: 61 lbs.(rear section)

Disassembly: 7 easy-to-transport pieces *With battery size typically shipped on new units:

Note: Turning radius derived in accordance with ANSI/RESNA methodology
